SAMPLE LAYOUT OF CASHEW FACTORY

Specification:

- Power supply: 3 phase – 380V

- Capacity: 05 trays/minute

- Power: 2HP, 3 phase 380V

- Dimension: 7x2x3m (LxWxH)

Specification:

- Capacity: 500kgs/h

- Power: 2HP, 3 phase 380V

- Dimension: 1x1x1m (LxWxH)

Specification:

- Feeding Conveyor 1HP 1/20

- Sizing Sieve

- Electric Box

- Capacity: 400 – 500kgs/h

- Power: 2HP, 3 phase 380V

- Dimension: 4x2x2m (LxWxH)

Specification:

- Feeding Conveyor 1HP 1/20

- Upper Hopper + Vibrated Trough

- Inspection kernel Conveyor 6m 1HP 1/30

- Capacity: 1,000 – 1,500kgs/h

- Power: 2HP, 3 phase 380V

- Dimension: 8x1x2m (LxWxH)

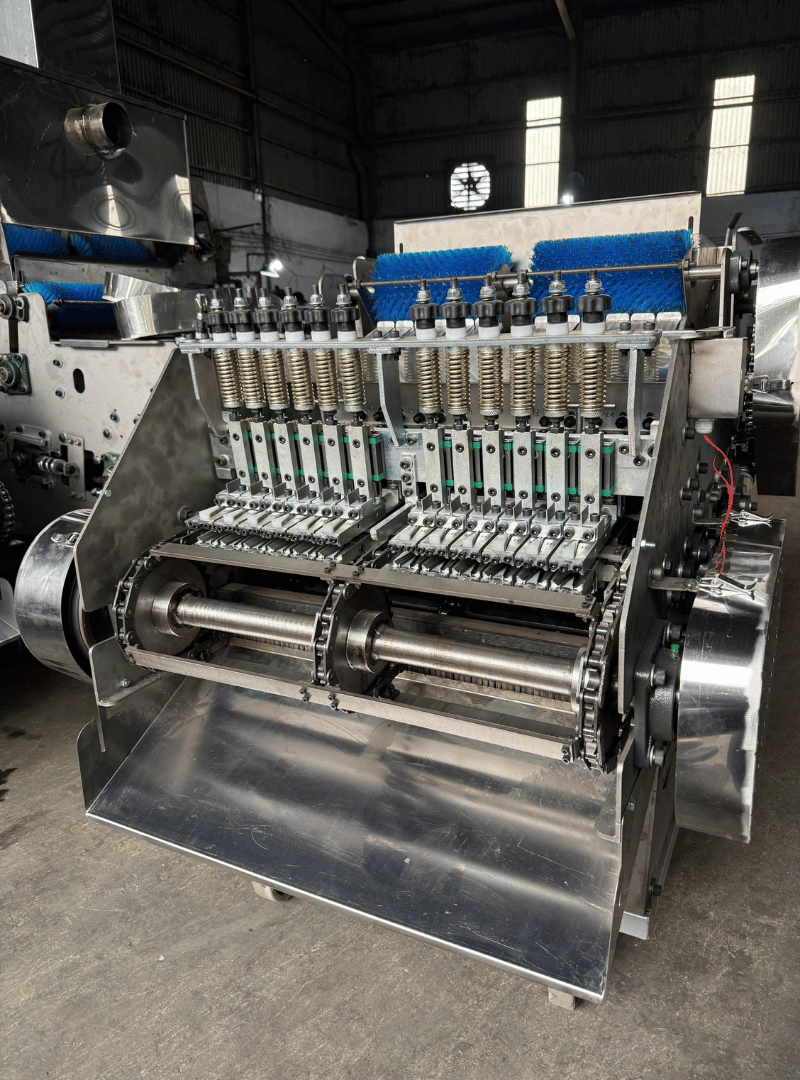

Specification of machine 10 cutting line:

Power supply: 3 phases- 380V.

Power: 0.75Kw.

Capacity: 200-250kgs/hr.

Installation area: 1.2x1,3x1,5m (LxWxH).

Each player has 10 lines cutting knife, Rate of the first cut: ≥ 95% size AB, ≥ 85% size CD

Breakage rate of the first cut: 3 - 6% size AB, 6- 8% size CD

Specification of machine 8 cutting line:

Power supply: 3 phases- 380V.

Power: 0.75Kw.

Capacity: 160-200kgs/hr.

Installation area: 1.2x1x1.5m (LxWxH).

Each player has 8 lines cutting knife, Rate of the first cut: ≥ 95% size AB, ≥ 85% size CD

Breakage rate of the first cut: 3 - 6% size AB, 6- 8% size CD

Specification:

- Power: 37KW

- Capacity: 1200- 1500kgs/h

- The Gear box is inside motor oil

- Demension: 3x 2x 2 ( Lx Wx H)

- Weigh: 2,500kgs

Specification:

- Included dressurized tank: 1500 litre

- Air dryer machine

- Filter

- Power: 37.5KW( 50HP)
